Recommended for low to moderately corrosive applications

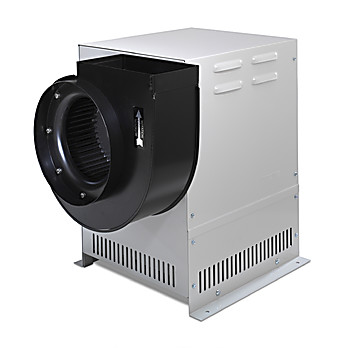

Intelli-Sense Multi-Speed Blowers are weatherized, direct drive, non-explosion-proof blowers controlled by a two or three position switch. Each blower has a reliable electronically commutated motor (ECM), which consumes one third less energy and is easier and less expensive to maintain than beltdrive motors.
Intelli-Sense Blowers take much of the guesswork out of blower selection. Since they are adjustable over a broad airflow range, they may be used to exhaust fume hoods from 3' to 7' in width at full sash open height and 100 fpm face velocity. The blowers may also be used with hoods from 8' to 16' in width with reduced air volume modifications. As needs change, the blower settings may be adjusted to accommodate new airflow requirements.
Features & Benefits
- Phenolic coating on impeller and housing is corrosion resistant
- Powder-coated base and weather cover provide long life in extreme weather
- Direct drive, UL listed, ECM motor uses one third less energy than belt drive motors
- Thermal override protection. RPM speeds are automatically reduced when motor is overloaded
- Flow-through vent holes and louvers allow air to circulate.
- Removable weather cover allows easy access to ECM motor and impeller shaft.
- Forward curved impellers are balanced to ensure quiet operation and optimum air delivery.
- Speed control box included for mounting on top of customer-supplied fume hood and blower switch and label† for multiple speed operation
- When blower is properly installed to ductwork, sound levels range from 50 to 70 dba
- Variable exhaust orientation adjusts to eight outlet positions for installation flexibility (vertical discharge is recommended)
Models without control boxes are for use with Protector I-S Hoods ONLY. All other hoods require the blower with the control box.
