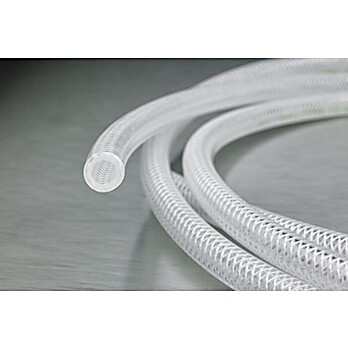

C-Flex® TPE Braided tubing for high pressure application
C-Flex® Braided tubing is specifically designed to meet the critical demands of high pressure fluid processing applications in pharmaceutical and biopharmaceutical for fluid process.
The Material Difference
C-Flex® Braided is produced using the C-Flex® 082 translucent ADCF (Animal Derived Component Free) material formulation, a TPE material commonly approved for use in many biopharmaceutical applications. Reinforcement is provided by a polyester fiber that provides increased pressure rating and improved bend radius. It is compatible with steam sterilization and gamma-irradiation. C-Flex® Braided tubing is part of a family of TPE tubing offering the widest range of formulations and sizes in the industry including C-Flex® 082 and 374 translucent tubing for fluid flow visibility, and C-Flex® 072 opaque for peristaltic pump applications and transfer of light sensitive fluids.
Biocompatible
C-Flex® Braided tubing is manufactured from C-Flex 082 thermoplastic materials and tested to a variety of specifications.
Features / Benefits
- Up to five times higher burst pressures compared to non-braided materials.
- A product validation test summary is available.
- Compatible with overmolding technology for single-use systems
- Ultra-flexible, improved bend radius over non-reinforced tubing
- Compatible with autoclave and gamma irradiation
- Temperature range -67°C to 135°C (-85°F to 275°F)
- Available in 15 and 25 foot lengths, custom lengths available upon request
Typical Applications
- Vessel and tank transfers with elevated pressure requirements
- High pressure tests such as Filter Integrity Testing
- Fluid transfer applications needing crush or kink-resistance
